Calculator of straight flight stairs with closed stringer (solid, housed) online +3D

Calculator of straight flight stairs with closed stringer (solid, housed) online +3D

All calculators
Error calculationPlease check your input
the Calculator will be available after changes in the relevant parameters.
Click "Calculate" to open the options window.
Choose Drawing:
Distance: 0
Calculation resultsStaircase
  • Stair Angle, Pitch: 32.69 °
  • Rise: 17.65 mm
  • Tread Depth (material width): 33.3 mm
  • Going: 27.5 mm
  • Number of Steps: 16 pcs.
  • Stairs Width: 100 mm
  • Minimum Stringer Throat Depth (width): 30.38 mm
Materials for constructionClosed Stringer (solid, housed)
  • Stringer Width: 31.35 mm
  • Length: 540.75 mm
  • Thickness: 6 mm
  • Quantity: 2 pcs.
  • Wood Volume: 0.203 m3
Steps (treads)
  • Tread Depth: 33.3 mm
  • Tread Length: 88 mm
  • Tread Thickness: 4 mm
  • Number of Steps: 16 pcs.
  • Wood Volume: 0.188 m3
Stair risers
  • Width: 13.65 mm
  • Riser Length: 88 mm
  • Thickness: 1.8 mm
  • Number of Risers: 16 pcs.
  • Wood Volume: 0.035 m3
Balustrade
  • Handrail Width: 8 mm
  • Handrail Thickness: 4 mm
  • Balustrade Length: 538.67 mm
  • Wood Volume: 0.017 m3
Balusters
  • Baluster Width: 5 mm
  • Length: 86.85 mm
  • Quantity: _ pcs.
  • Wood Volume: _ m3
Initial parametersStair Type
  • Left Turn:  selected
Stairs dimensions, Stairwell
  • Total Rise (from finish floor - to finish floor): 300 mm
  • Total Run: 450 mm
  • Staircase Width: 100 mm
Steps (treads)
  • Number of Steps: 16 pcs.
  • Tread Thickness: 4 mm
  • Nosing (Tread Overlap): 4 mm
  • Top tread one step height below upper level: 1 mm
Closed Stringer (solid, housed)
  • Thickness: 6 mm
Stair risers
  • Thickness: 1.8 mm
Upper Floor Slab
  • Slab overlap above bottom of stairs (Total Run minus Stairwell): 100 mm
  • Slab Thickness: 20 mm
Balustrade
  • Handrails Height: 90 mm
  • Baluster Width: 5 mm
  • Handrail Thickness: 4 mm
  • Handrail Width: 8 mm
Wall
  • Wall Thickness: 20 mm
Choose saving method
Bookmark a Website
Keep a reference to the result of the calculation in the section "My bookmarks" in your account.
Share in social network
Share the link to the calculation on Facebook, Twitter, Google+, etc.
How to save the calculation results on your computer?
  1. Pick up the necessary parameters for the calculation.
  2. Select the appropriate "Method of preservation".
  3. Select "payment Option" for granting access to:
    • Subscription "Novice" enables access to detailed drawings and calculations. The preservation of each unique calculation is charged separately. In accordance with price list. Any purchased you can re-calculate the free to download an unlimited number of times. The list of "Saved calculations" available at Personal account.
    • Subscription Handyman enables access to detailed drawings and calculations, provides the ability to save and download any of the calculations of unlimited the number of times for the duration of your subscription.
    • Subscription Pro allows you to set the drawings of your logo or off are available. Enables access to detailed drawings and calculations, provides the ability to save and download any of the calculations ofunlimited the number of times for the duration of your subscription.
  4. After successful payment, access to the results of the calculation will be downloaded to Your PC or sent to your mail (which You used for registration), depending on the selected "type of save".
  5. Usually save the results of calculation do not exceed 1 minute.

In case of problems when saving the results of the calculation, please send us a bug report through the form feedback contact page.

Select the subscription for additional features Kalk.Pro
More than 10,000 users have already used advanced access to successfully create their project. Detailed drawings and estimates of the project save up to 70% of the time on the preparation of construction elements, as well as prevent unnecessary consumption of materials.
More information about subscriptions can be found here.
Help

Please make sure your stair design complies with all local building codes and regulations requirements! It is very crucial step

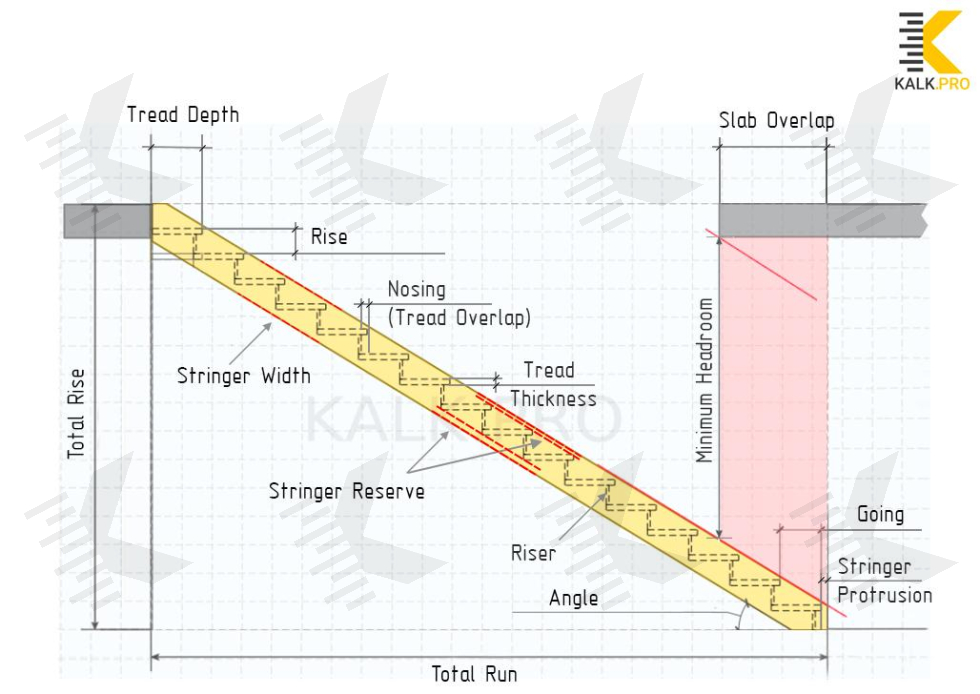

Calculator of closed stringer stair (solid, housed, routed)

Straight flight closed stringer stair is a single-flight construction with a solid / glued wooden beams as supporting elements. It is the simplest construction in terms of manufacturing and assembly, since it does not require the creation of a saw-tooth stringer and constant monitoring of compliance with the minimum throat depth, and also involves a greater number of methods for mounting treads (fitting into a housed stringer, treads supported by cleats ...). The main disadvantage is the cumbersome design and the need to create a wider stairwell opening, compared with the saw-tooth stringer.

The online calculator for calculating straight wooden closed stringer stairs allows you to determine the parameters of all the components of the structure, calculate the amount of necessary materials for construction, draw up detailed drawings with scale and visualize the stairs in the form of a 3D model. Also, the tool automatically provides recommendations for creating the most ergonomic design. All calculations are performed on the basis of mathematical formulas, excluding the occurrence of random errors.

Stair calculation step by step

  • Step 1 . Select units of measurement - mm, cm, m, inches, feet.
  • Step 2 . Choose the type of drawing - b&w, color.
  • Step 3 . Determine the type of staircase configuration - with a left turn, with a right turn.
  • Step 4 . Determine the staircase dimensions - Total Run, Stair Width, Total Rise (if the upper step is at the level of the 2nd floor, stairwell opening height = staircase height).
  • Step 5 . Fill in the steps dimensions and related values ​​- number of steps, thickness of the tread, nosing (protrusion beyond the riser), choose option: the upper step below the level of the 2nd floor or at the level.
  • Step 6 . Determine stringer parameters - beam thickness, stringer height above the nosing line and below a layout line, distance from seat cut toe to the 1st step (including the riser thickness and the step protrusion or nosing). See more details in the drawings.
  • Step 7 . Fill in the risers parameters (optional).
  • Step 8 . Choose dimensions of the Stair Railing - height of the handrail, baluster width, handrail thickness and width.
  • Step 9 . Slab overlap and walls - it is necessary to fill in for correct 3D visualization (it does not affect the configuration of the stairs).
  • Step 10 . Confirm the entered data and the begin the housed stringer staircase calculation by clicking on “Calculate”.

Recommendations

In order to create the most comfortable straight staircase with the help of our calculator, it is necessary to carry out the calculation based on the exact double-checked data of the opening measurement, and also use the parameters of the main structural elements in compliance with Building regulations.

The values used are obtained on the basis of the “convenient staircase” formula of the French architect Francois Blondel and have been actively used by technical specialists for several centuries.

Blondel formula: 2 × r + g = 63- 65 cm,

  • r — step height (rise);
  • g — step width (run, going);
  • 63/65 cm — the average stride length of a person.

There are also two formulas for planning comfortable staircases among carpenters:

  1. Formula r+g =18 inches (or 17 -19). Rise plus Run equal 18 inches.The IRC limits h+s on 17 ¾” (7 ¾” + 10”)
  2. Formula 2r+g=25 inches. Two rises plus one run equal of 25 inches. The IRC limits 2h+s of 25 ½” (2*7 ¾” + 10”)

It is crucial to comply building codes and state standards, as well as other technical documents for designing comfortable straight stairs, but also safe and strong enough to withstand the necessary loads. The calculator does not take these features into account, but nevertheless does not allow you to enter critically invalid values. The Building Codes  and regulations   vary  considerably between  countries, between states and regions.  We will give you some information for USA, UK, Australia.

Stair Riser and Going Dimensions (mm) - USA
     Picture 1. Stair Riser and Going Dimensions for USA
Stair Rise and Going Dimensions - Australia
   Picture 2. Stair Rise and Going Dimensions for Australia

"The height of a balustrade or other barrier must be not less than 1 m above the floor of any access path, balcony, landing, etc, and not be less than 865 mm above the nosings of the stair treads or the floor of a ramp."

Stair Rise and Going Dimensions - UK
   Picture 3. Stair Rise and Going Dimensions (mm) - UK Building Regulations 2010 Part K, 2013 edition

1. The maximum pitch for a private stair is 42°

2. For dwellings, external tapered steps and stairs that are part of the building, the going of each step should be a minimum of 280 mm.

Headroom - at least 2m
